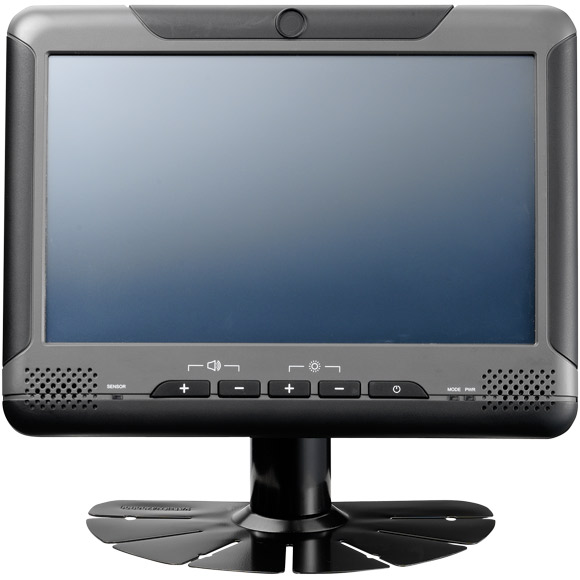

VMD 1001

7" VGA Vehicle Mount Display with Touch Screen and VGA Interface
  • Main Feature
  • 7" VGA TFT LCD monitor
  • Automatic/ manual brightness control
  • Wide range DC input from 9~36V
  • Direct VGA input interface
  • Support USB 2.0 and card reader
  • Optional sunlight readable touch support
  • Front panel compliant with IP54
Add to Inquiry
Datasheet(PDF)
General Enclosure: Plastic PC + ABS Mounting: Support VESA 75, panel and wall mounting Power Input: 9 ~ 36VDC Power Consumption: 18W Ingress Protection: Front panel IP54 Dimension: 182mm (W) x 138mm (H) x 36.3mm (D)
(7.17" x 5.43" x 1.43") Weight (Net): 0.45Kg, 0.99Lb
LCD Panel 7-inch TFT LCD panel with LED backlight 800 x 480 pixels (VGA) Brightness: 500 cd/m2 (typical) Contrast ratio: 600:1 (typical)
Touch Screen Sensor 4-wire resistant touch Anti-glare coatingsurface Transmission rate: 82 ± 3%
I/O Interface-Front 5 x Control buttons
Power on/off
Volume control (+/-)
Brightness control (+/-) Light sensor 2 x LED indicators 2 x Built-in speakers (1W)
I/O Interface-Lateral 1 x USB type A for storage 1 x Line-in 1 x Line-out
(automatic detection/ switch to external speaker)
I/O Interface-Bottom 1 x Power connector 1 x USB type B for touch screen and USB hub 1 x VGA
Optional Features Sunlight-readable touch screen
(4 wires resistive w/ anti-glare coating) Support VESA 75, wall and stand mount kit
Environment Operating temperature: -20°C to 70°C Storage temperature: -30°C to 80°C Vibration (random): 5g@5~500 Hz Vibration
Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck
Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock
Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g
Standards/ Certifications CE approval FCC Class B
