nROK 6232-WIC4S

Fanless 4-CH PoE Rolling Stock Computer with Intel Atom® x7433RE
  • Main Feature
  • Intel Atom® x7433RE processor
  • 4 x PoE (802.3 bt/af/at, up to 90W total)
  • Built-in u-blox-M9N GPS
  • Built-in CAN FD
  • EN 50155, class OT4 conformity
  • 3 x Expansion slot
  • 1 x eMMC to run OS
  • Two video outputs, one VGA, and one HDMI®
Add to Inquiry
Datasheet(PDF)

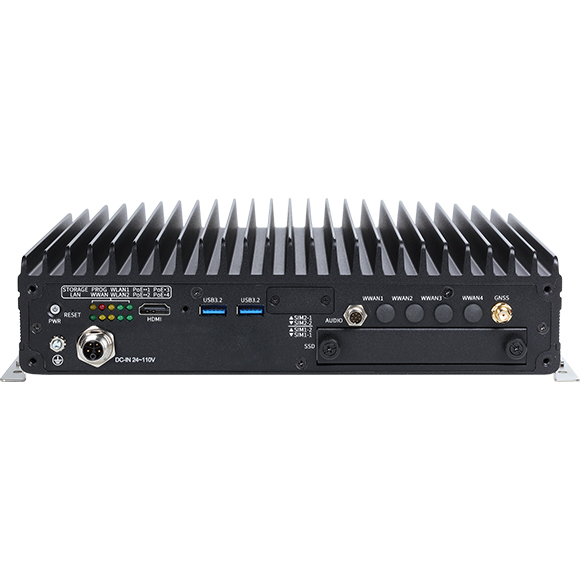

The nROK 6232, based on the Intel Atom® x7433RE processor, specifically complies with the stringent EN 50155 standard in a rugged, fanless, and compact mechanism. The nROK 6232 provides complete communication capability between the train and the computer with a built-in CAN FD interface. Equipped with intelligent power management, the nROK 6232 can be woken up by ignition, RTC timer, or remotely through SMS message. The nROK 6232 supports four 802.3bt/af/at PoE ports (maximum total 90W) to connect with IP cameras. Its design with a 2.5" removable SSD and eMMC facilitates easy storage access. The nROK 6232 maintains the flexibility to meet the demands of video surveillance in train applications.
