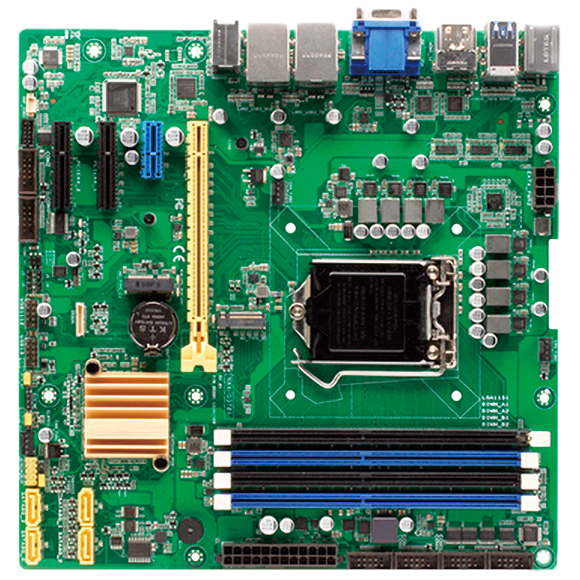

CPU Support | 8/9th Generation (Coffee Lake-S, Coffee Lake-S Refresh) Intel® Core™ i9/i7/i5/i3/Pentium® LGA 1151 socket processor, max. 95W Intel® Q370 express chipset |
Main Memory | 4 x DDR4 U-DIMM memory socket with non-ECC support, up to 128GB 2666MHz |
BIOS | 256Mbit Flash ROM, AMI BIOS |
Display |
2 x HDMI 1.4b connector (resolution up to 4096 x 2160@24 Hz/2560 x 1600@60 Hz, with digital audio)
1 x DP connector (resolution Up to 4096 x 2160@24 Hz/3840 x 2160@60 Hz, with digital audio)
1 x VGA connector (resolution up to 1920 x 1200@60Hz) * Tip: Multiple Display : (HDMI + VGA + DP, HDMI + HDMI + VGA, HDMI + HDMI + DP). |
System | 1 x PS/2 combo, 6 x USB 3.2 (Gen2), 4 x USB 3.2 (Gen1) 5 x RS232, 1 x RS232/485/422 & (by COM1) Realtek ALC897 6 channel HDA codec 1 x Front panel header, 8-bit digital I/O (In/Out programmable), WDT, chassis intrusion. 3 x Fan connector. Nuvoton NPCT750 TPM2.0 onboard |
Storage | 4 x SATA 3.0 (6.0Gb/s) ports, support RAID 0/1/5/10 1 x M.2 2280 Key M (PCIe x4/SATA3) |
Expansion Slot | 1 x PCIe x16, 2 x PCIe x4 (open edge), 2 x PCIe x1 (open edge), 1 x M.2 2230 Key E (PCIe x1/USB 2.0) |
Edge I/O |
1 x PS/2 combo
6 x USB 3.2 (Gen2), 4 x USB 3.2 (Gen1)
2 x HDMI, 1 x DP, 1 x VGA
2 x RJ45 - Intel® PHY I219-LM GbE LAN x 1 (supports Intel® AMT 12.0) - Intel® I210-AT GbE LAN x 1 1 x 3 ports HD Audio Jack (Line, Mic-in, Line-out). |
Internal I/O |
2 x USB 2.0 (2 x 5 2.54mm pin header)
6 x Serial ports - 5 x RS232, 1 x RS232/485/422 1 x 8-bit digital I/O HA audio: - 1 x speaker header (Line-out) |
Power Requirement | 1 x 24-pin ATX connector x 1, 8-pin (2 x 4) A TX 12V power connector Support both AT and ATX power supply mode |
Dimensions | Micro-ATX form factor, 9.6” x 9.6” (244 mm x 244 mm) |
Environment |
Board level operation temperature: 0°C to 60°C
Storage temperature: -40˚C to 85˚C
Relative humidity: - 10% to 95% (operating, non-condensing) - 5% to 95% (non-operating, non-condensing) |
Certifications | Meet CE/FCC Class A |
