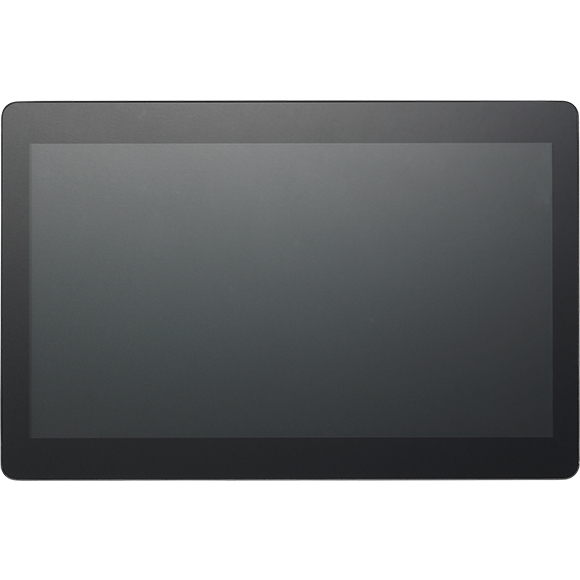

XPPC 16-200

15.6” TFT FHD 16:9 Slim Bezel, Multi-touch Computer Powered by 11th Generation Intel® Core™ Processor
  • Main Feature
  • 15.6” TFT FHD 16:9 panel
  • 10 Points P-Cap multi-touch with slim bezel design
  • IP65 protection on the front
  • Support: VESA/Panel/Openframe Mount
  • 11th Generation Intel® Tiger Lake-UP3 Core™ processor SoC
  • 1 x 260-pin DDR4 SO-DIMM up to 32G
  • Onboard M.2 2280 Key M with PCIe x4 signal for storage module
  • Onboard M.2 2230 Key E for optional Wi-Fi modules
  • Support power input 12 VDC
Add to Inquiry
Datasheet(PDF)
Panel LCD size: Innolux G-series 15.6”, 16:9 Resolution: Full HD 1920 x 1080 Luminance
- LCD panel: 450cd/m2
- XPPC PCAP touch: 405cd/m2 Contrast ratio: 700 LCD color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
Touch Screen 10 Points P-Cap (projected capacitive touch) Optical bonding Glass surface treatment: AS (Anti-Smudge Coating for easy cleaning)
System XPPC 16-200-i3
- Onboard 11th Generation Intel® Core™ i3-1115G4E processor, Dual Core, 2.2 GHz base frequency, 6M Cache (formerly Tiger Lake-UP3)
- Intel® UHD Graphics 630 on i3 processor XPPC 16-200-i5 (by request)
- Onboard 11th Generation Intel® Core™ i5-1145G7E processor, Dual Core, 1.5 GHz base frequency, 8M Cache
- Intel® Iris® Xe graphics on i5 processor
Main Memory 1 x 260-pin DDR4 SO-DIMM, supports non-ECC, un-buffered memory up to 32G
Storage Device 1 x M.2 2280 Key M SSD, support PCIe x4
Expansion 1 x M.2 2230 Key E, support optional Wi-Fi modules
Rear I/O 1 x RS232/422/485 1 x 12V DC Jack 2 x RJ45 Intel® Gigabit LAN port 1 x DP++ 1 x HDMI 2.0 4 x USB 3.0 1 x Line-out LED for power on/off Power switch
Front I/O 2 x Antenna hole
Mechanical & Environment Color/material: black silver/metal sheet Support
- VESA mount 100mm x 100mm
- Panel mount
- Open frame
Environment Vibration
- IEC 68 2-64
- 2Grms @ sine, 5~500Hz, 1hr/axis
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock
- IEC 68 2-27
- 50g peak acceleration (11 msec. duration) Temperature
- Operating temperature: 0°C~50°C
- Storage temperature: -20°C~60°C Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions System: 382.2mm x 251.4mm x 51.7mm System weight: 3.0kg Package: 476mm x 355mm x 206mm Package weight: 4.7kg
Power Supply 1 x External 96W AC/DC power adapter with lock (power adapter is included in accessory) Input: 100VAC to 240VAC Output: DC+12VDC
Certifications CE (EN55035 + EN55032) FCC Class A (EMI Part 15B) LVD (EN62368-1)
OS Support Lists Win10 64-bit Linux
