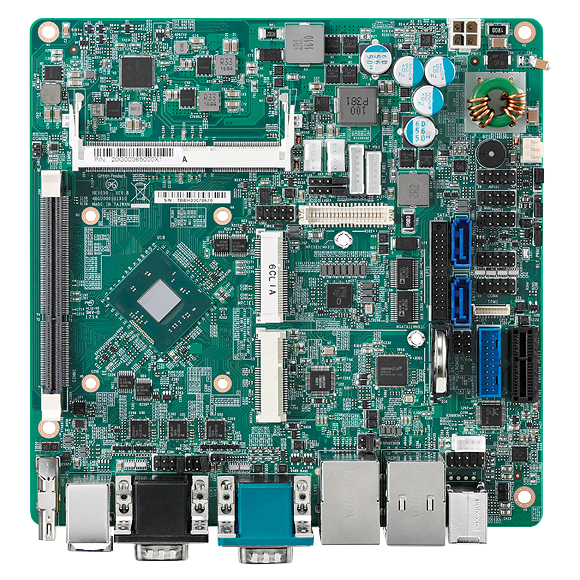

NEX 650-ADU

Mini-ITX form Factor with Onboard Intel® Celeron® Processor J1900 Product Family
  • Main Feature
  • Intel® Celeron® processor J1900
  • Integrated Intel® Gen7 Intel® graphics DX 11, OGL3.2
  • Supports dual channel DDR3 1333MHz, 2 x SO-DIMM, up to 8GB system memory
  • 3 x COM (RS-232/422/485), 2 x COM (RS-232); 1 x HDMI, 1 x D-Sub, 1 x Dual channel 24-bit LVDS; 4 x USB 3.0, 6 x USB 2.0, 2 x SATA2; Gigabit LAN :
    2 x Realtek LAN
  • 12~24 V DC-in power support
Add to Inquiry
Datasheet(PDF)

NEX 650-ADU is the NEXCOM most advanced flagship Mini-ITX form factor powered by onboard 4-core Intel® Celeron® J1900 processor (codenamed Bay Trail) that integrates with 24/48-bit LVDS & upto 8GB DDR3/L memory & rich I/Os.

NEX 650-ADU represents a powerful model for intensive multi-media & high computing base application which can be embedded into fan-less or 1U/2U rack mounted chassis as customized system–ready PBOX solution. The wide range 12~24V DC-in.
