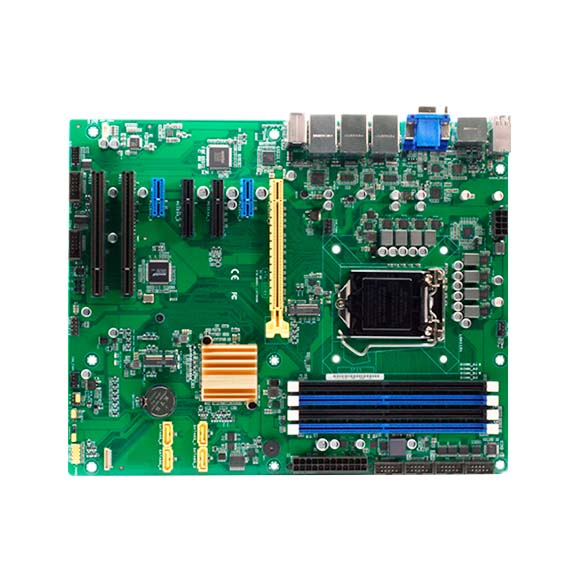

NEX 913

ATX Industrial Motherboard with 8th/9th Generation Intel® Core™ Processor
  • Main Feature
  • 8th/9th Generation (Coffee Lake S, Coffee Lake S Refresh) Intel® Core™ i9/i7/i5/i3, Pentium® 14nm LGA 1151 socket processor, Max. 95W, PCH Q370
  • 4 x U-DIMM DDR4 with non-ECC 2666MHz up to 128GB
  • Support triple display HDMI, DP, VGA
  • 2 x Intel® GbE LAN ports, 4 x USB 3.2 G( en2), 2 x USB 3.2 G( en1), 4 x USB 2.0, 5 x RS232, 1 x RS232/485/422, 4 x SATA 3.0, 8-bit GPIO, HD audio
  • 1 x PCIe x16, 2 x PCie x4, 2 x PCIe x1, 2 x PCI, 1 x M.2 (2230K ey E), 1 x M.2 (2280 Key M)
  • Onboard TPM 2.0
Add to Inquiry
Datasheet(PDF)

The NEX 913 is an ATX board. It is equipped with 8/9th Generation Intel® Core™ i9/i7/i5/i3/Pentium® processors to support 95W max and Intel® Q370 chipset. It comes with four DDR4 DIMM sockets up to 128GB DDR4 U-DIMM 2666MHz with non-ECC support and integrated HD graphic controller. The NEX 913 with Intel® Q370 PCH provides high performance and rich expansion. The SATA 3.0 ports with RAID 0, 1, 5, and 10, helps to provide quick access to data file sand data protection. Furthermore, it also features an integrated Intel® AMT 12 for easier maintenance.

NEX 913 operates at a temperature range from 0°C to 60°C, this design is ideal for embedded applications that run in outdoor or semi-outdoor environments, such as kiosks, outdoor systems installed in harsh environments, home automation, and thin clients.
