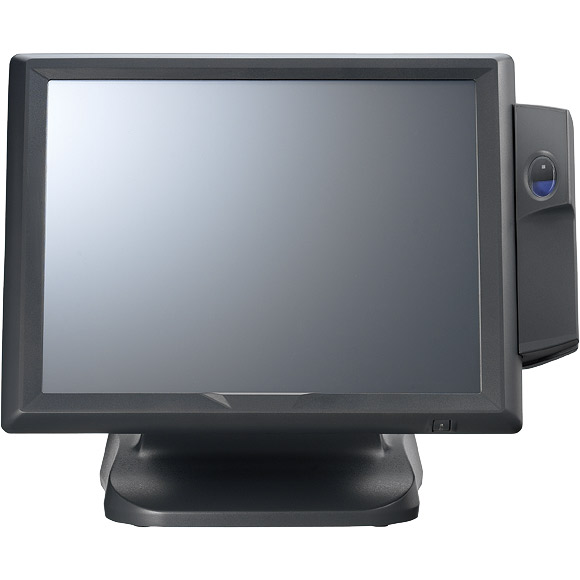

NPT 1560

High Value Fanless Point-of-Sales 15" TFT LCD Terminal
  • Main Feature
  • Quad core Intel® Celeron® processor J1900 2GHz
  • 4GB of DDR3L SO-DIMM memory
  • 15" 4:3 XGA(1024*768) 5 Wire-Resistive touch display with IP65 rated front panel
  • Fanless design
  • 320GB 5,400rpm 2.5" HDD
  • 2 x Mini-PCIe, 4 x COM, 2 x USB 3.0, 2 x USB 2.0, 1 x VGA, 1 x GbE LAN
  • 24VDC 120W Power brick
  • Optional peripheral expansion: MSR, fingerprint, VFD, 2nd display, cash drawer, scanner
Add to Inquiry
Datasheet(PDF)
System Processor Motherboard: NP-BYT0-B/C/D Processor: Intel® Celeron® processor J1900, 4C, 2.0 GHz, 2MB Cache Chipset: Integrated in Intel® Atom™ SoC System Memory: 1 x SO-DIMM DDR3L 1333 4GB Graphics: Integrated graphics controller, Intel's Gen 7 graphics and media encode/decode engine
LCD Touch Screen LCD Size: 15" TFT XGA (1024x768) 250cd/m² LED Panel Touch Screen: 15" 5-wire Resistive Touch Panel Tilt Angle: 0° ~ 80°
Storage Device 1 x 2.5" SATA HDD 320GB 5,400rpm Removable type
Expansion 1 x Full size mini-Card slot (mini-PCIe/USB/3G SIM slot) 1 x Half size mini-Card slot(mini-PCIe/USB)
Rear I/O Serial port: 4 x DB-9 Powered RS-232 (adjust RI/5V/12V by BIOS setting) USB port: 2 x USB 3.0, 2 x USB 2.0 Parallel port: 1 x DB-25 Parallel Optional LAN Port: 1 x RJ-45 (10/100/1000Mbps Ethernet) VGA: 1 x DB-15 VGA Cash Drawer Port: 1 x RJ-11, support Two Cash Drawers (24V, Max 1.1A) DC-IN Jack: 1 x DC-24V Input DC-OUT Jack: 1 x DC-12V Output for 2nd Display Power (12V, Max 3.0A) Line-OUT/MIC: 1 x Line-OUT for External Audio Speaker
Audio 1 x System Buzzer
System Control/Indicator Power Switch: 1 x Power ON/OFF switch Power LED: 1 x Power ON LED (Green)
Power External AC DC 24V/5A 120W Power Brick
Peripheral (Optional) MSR: ISO 3 Tracks MSR (USB/RS-232 combo interface or PS/2) MSR/Fingerprint Combo: ISO 3 Tracks MSR (PS/2) & Fingerprint (USB) combo Customer Display: 2 x 20 VFD customer display 2nd Display: 15" LCD monitor
Environment Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F) Operating Humidity: 20% - 80% RH non-condensing Storage Humidity: 20% - 85% RH non-condensing
Dimension 80° tilt angle: 368mm (W) x 331mm (H) x 210mm (D) (No MSR) 80° tilt angle w/ MSR: 410mm (W) x 331mm (H) x 210mm (D) Display Head: 368mm (W) x 282mm (H) x 69.9mm (D) Display Head w/ MSR: 410mm (W) x 282mm (H) x 69.9mm (D) Footprint: 249mm (W) x 209mm (D) Package Size: 490mm (L) x 390mm (W) x 400mm (H) (No MSR); 560mm (L) x 390mm (W) x 350mm (H) (w/ MSR)
Weight Net Weight: 8.0kg (17.6lbs) Gross Weight: 9.5kg (20.9lbs)
Operating System Windows: Windows 8, WES 8, POS 7, Win 7 Pro, WES 7 Linux: Fedora 17, TIZEN
Certificate FCC / CE / LVD
