aROK 5510

Intel® Core™ 8/9th Gen./Xeon® CPU with Rich Storage Powerful Platform for AI Application and Storage Server
  • Main Feature
  • Intel® Coffee Lake S/Refresh 8th/9th-Gen Core™/Xeon® LGA1151 socket-type CPU
  • 100W power consumption graphics card support
  • Eight SIM cards + four WWAN modules support
  • LTE/5G WWAN module support
  • 6 x External SSD for RAID 0, 1, 5, 10
  • PCle 3.0 x4 NVMe 1.3 high performance SSD support
  • EN 50155, class OT4 conformity
  • 3 x mini-PCIe + 3 x M.2 socket expansion
  • Smart fan design with temperature-based RPMs
  • Optional expansion module for 4 x PoE M12 or 2 x 10GbE SFP+
  • Rackmount platform
Add to Inquiry
Datasheet(PDF)

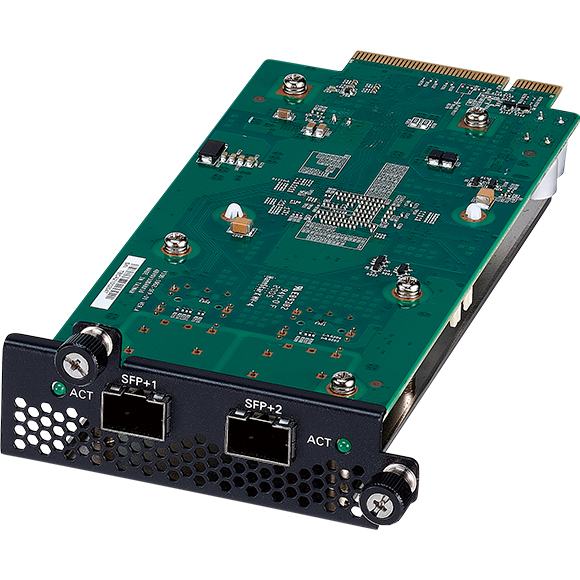

VIOD-10G2-SFP-01

Main Feature

Dual port SFP+, 10/1GbE

Compliant with SFP+ connections 10GBASE-SR,
10GBASE-LR and SFP+ Direct Attach Copper (DAC)
physical media

CE/FCC/EN50155 class OT4 conformity

Ordering Information:

P/N: 88A20551003X0

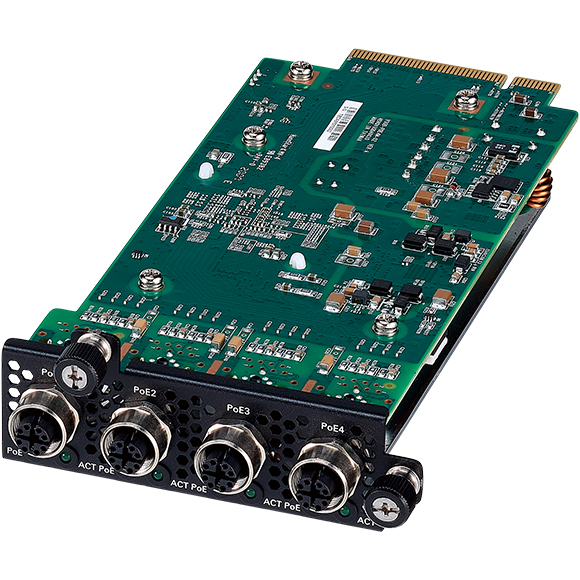

VIOD-POE4M-02

Main Feature

4-Port LAN M12 X-coded, 10/100/1000 Mbps

Supports PoE 802.3af/at, max. 60W

CE/FCC/EN50155 class OT4 conformity

Ordering Information:

P/N: 88A20551002X0
