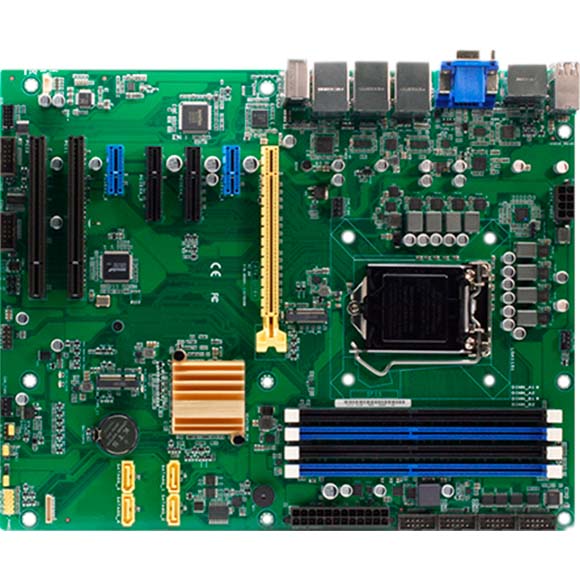

NEX 913

ATX Industrial Motherboard with 8th/9th Generation Intel® Core™ Processor
  • Main Feature
  • 8th/9th Generation (Coffee Lake S, Coffee Lake S Refresh) Intel® Core™ i9/i7/i5/i3, Pentium® 14nm LGA 1151 socket processor, Max. 95W, PCH Q370
  • 4 x U-DIMM DDR4 with non-ECC 2666MHz up to 128GB
  • Support triple display HDMI, DP, VGA
  • 2 x Intel® GbE LAN ports, 4 x USB 3.2 G( en2), 2 x USB 3.2 G( en1), 4 x USB 2.0, 5 x RS232, 1 x RS232/485/422, 4 x SATA 3.0, 8-bit GPIO, HD audio
  • 1 x PCIe x16, 2 x PCie x4, 2 x PCIe x1, 2 x PCI, 1 x M.2 (2230K ey E), 1 x M.2 (2280 Key M)
  • Onboard TPM 2.0
Add to Inquiry
Datasheet(PDF)

Barebone


NEX 913 (P/N: 6879G0009130F)
ATX form factor, 8th/9th Generation (Coffee Lake) Intel® Core™ I (up to 95W), Q370, LGA1151, 4x DDR4 U-DIMM, VGA, HDMI, DP, 4 x USB 3.2 (Gen2), 2 x USB 3.2 (Gen1), 4 x USB 2.0, 3 x GbE LAN, 4 x SATA 3.0, 5 x RS232, 1 x RS232/422/485, 1 x PCIe x16, 2 x PCIe x4, 2 x PCIe x1, 2 x PCI slots, 2 x M.2, onboard TPM


Packing list
SATA cable x 2
I/O shield
NEX 913


Optional Accessories
LGA115X CPU cooler (P/N: 5050200022X00)
SATA cable (P/N: 60233ATA48X00)
COM cable (P/N: TBD)
