NISE 3720 Series Industrial IoT Gateways & Controllers Build up Smart Manufacturing

NEXCOM has released the NISE 3720 series industrial IoT gateways and controllers for smart manufacturing. Supporting 5th generation Intel^® Core™ processors, the NISE 3720 series provides enhanced computing and graphics capabilities. Adding the support for cross-protocol communication capability, the NISE 3720 series connects factories, enabling intensive data analysis of a data concentrator and information visualization required for big supervisory control and data acquisition (SCADA) applications.

Featuring 5th generation Intel Core processors, the NISE 3720 series industrial IoT gateways and controllers support big SCADA applications with high performance computing, graphics conversion, video transcoding, Ultra HD 4K display, fieldbus communication, and Wi-Fi/3G/LTE capabilities. The NISE 3720 series can consolidate and display real-time data and surveillance videos, providing valuable insights into operational improvements and virtual presence at factory floors to increase factory productivity and safety.

"Factories are changing, looking for ways to squeeze greater efficiency from daily operation. Industrial computing platforms like the NEXCOM 3720 series are required to perform more tasks including data acquisition, data processing, data visualization, and data communication. Featuring the 5th generation Intel Core processors, the NISE 3720 series fulfills these new demands with a low power envelope, enabling data-driven decision making while delivering high system performance and high reliability" said Joe Lin, General Manager of NEXCOM's IoT Automation Solutions Business Group.

As communication interfaces and fieldbus protocols in use differ from factory to factory, the NISE 3720 series industrial IoT gateways and controllers are equipped with a set of I/Os and support fieldbus networking—including PROFIBUS, PROFINET, DeviceNet, EtherNet/IP, and EtherCAT—and internet connectivity through modular expansion. For use in SCADA applications, the NISE 3720 series can not only monitor and control, for instance, PLCs and remote I/Os across factory but also interoperate with business clouds.

In addition, the NISE 3720 series industrial IoT gateways and controllers are designed with the free remote management tool NEXCOM Xcare™ 3.0 to simplify remote monitoring, configuration, backup, and restore of the industrial IoT gateways and controllers.

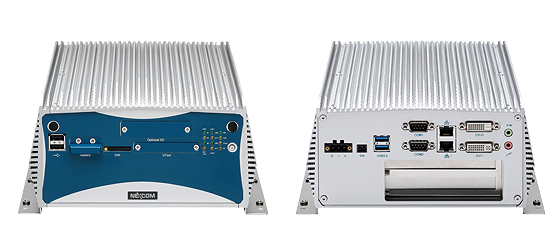

To respond to environmental challenges in factories, the NISE 3720 series offers enhanced electromagnetic compatibility and electrical insulation and has acquired FCC Class B certification to deliver high system reliability against electronic noise and spikes. The NISE 3720 series follows fanless design, has a compact rugged aluminum enclosure, and supports an extended temperature range from -20 to 60°C to ensure smooth daily operations.

The NEXCOM NISE 3720 series offers a flexible combination of processor and expansion configurations. The 3720 series is available with a choice of 5th and 4th generation Intel Core processors and comes with four expansion configurations: one PCIe, two PCIe, two PCI, and one PCI and one PCIe expansion slots.

Main Features

• FCC Class B Certification
  - ESD protection: 6KV by contact discharge and 8KV by air discharge based on EN61000-4-2 standard
  - Electrical Fast Transient/ Burst (EFT): 2KV on the DC input and 1KV on the signal according to EN 61000-4-4
  - Surge Protection: 1KV according to EN 61000-4-5
• Support 5th and 4th generation Intel^® Core™ processors
• Support 3x independent display (1x DVI-I & 1x DVI-D)
• 2x mini-PCIe socket for optional fieldbus/Wi-Fi/3.5G/mSATA module
• 1 x CFast socket
• 2x GbE LAN with WoL, teaming & PXE function
• 2x USB 3.0, 2x USB 2.0, 2x RS232/422/485
• Support 24V DC input +/-20%

Ordering Information

NISE 3720E (P/N: 10J00372000X0)

5th and 4th generation Intel® Core™ i7 fanless system with one PCIe expansion slot

NISE 3720E2 (P/N: 10J00372001X0)

5th and 4th generation Intel^® Core™ i7 fanless system with two PCIe expansion slots

NISE 3720P2 (P/N: 10J00372002X0)

5th and 4th generation Intel^® Core™ i7 fanless system with two PCI expansion slots

NISE 3720P2E (P/N: 10J00372003X0)

5th and 4th generation Intel^® Core™ i7 fanless system with one PCI expansion and one PCIe expansion slots

24V, 120W AC/DC power adapter w/o power core (P/N: 7400120015X00)
