NEXCOM HMI solution eSMART gives manufacturers a firm grasp of all production activities. Targeting factory automation applications, the eSMART solution offers rich function sets and simplified HMI design with the support for the HMI software JMobile Studio. The eSMART solution can visualize, control, and monitor machining processes and production line status, enabling manufacturers to stay on top of daily operations with real-time data at all times.

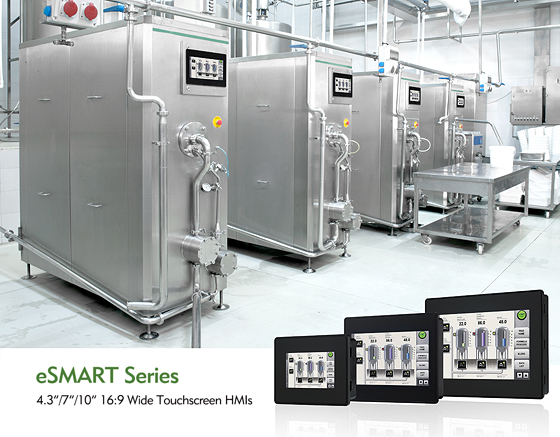

To present information, the eSMART solution is available with a 4.3-, 7-, and 10.1-inch 16:9 wide touchscreen and supports more than forty industrial communication protocols including EtherNet/IP CIP and OPC UA standards. The eSMART solution makes hassle-free integration with PLCs, CNCs, and control cabinets over COM, USB, and LAN connection for use in machine automation, process automation, and building automation applications.
To address different function requirements of individual HMIs, the eSMART solution enables fast creation and flexible design of application-specific features with the support of JMobile Studio. This HMI editor has a large library of symbols, widgets, and templates, and supports intuitive drag-and-drop operations and multiple languages—Eastern Asian languages included.
The eSMART solution then can run the created HMI, rendering a process in 3D simulation and displaying data in a various formats like bar graphs and analog gauges for instance. Despite the difference in screen sizes, the HMI can be resized to fit the screen without losing quality for high resolution display. Moreover, the eSMART solution can run in client-server mode so that extracted operating information can be accessed via local eSMARTs and via browsers, proving remote monitoring convenience for manufacturers.
Designed for durability and toughness, the eSMART solution has been tested and certified to the industrial control equipment standard UL 508 to ensure functional safety for use in tough industrial environments. Slim and rugged, the eSMART solution provides IP66/NEMA4X-rated protection against water and dust ingress on the front side and can withstand bending during the system integration process.
|Hardware Features||JMobile Features|
|‧||4.3"/7"/10.1" TFT color display, LED backlight||‧||JMobile runtime fully compatible with JMobile Studio|
|‧||480 x 272 pixel (WQVGA) resolution, 16.7M colors||‧||Extensive support of communication drives for factory automation|
|‧||Resistive touchscreen||‧||Rich symbol gallery and objects|
|‧||1x RS232/422/485, 1x Ethernet, 1x USB port||‧||Full vector graphic supporting SVG graphic objects|
|‧||Cost efficient HMI with plastic chassis||‧||Multilanguage support|
|‧||Slim design with mounting depth > 30mm||‧||Client-server functionality for remote monitoring|
4.3” widescreen true color TFT WQVGA touchscreen with Ethernet and USB interfaces, JMobile runtime
7” widescreen true color TFT WVGA touchscreen with Ethernet and USB interfaces, JMobile runtime
10.1” widescreen true color TFT WSVGA touchscreen with Ethernet and USB interfaces, JMobile runtime
JMobile Studio (HMI project programming software) license label
|For customers from Taiwan, China, Thailand, Vietnam, Philippines, Korea, UAE, and Saudi Arabia, please contact NEXCOM|
|‧||For customers from North America, Europe, and Japan, please contact Exor|
