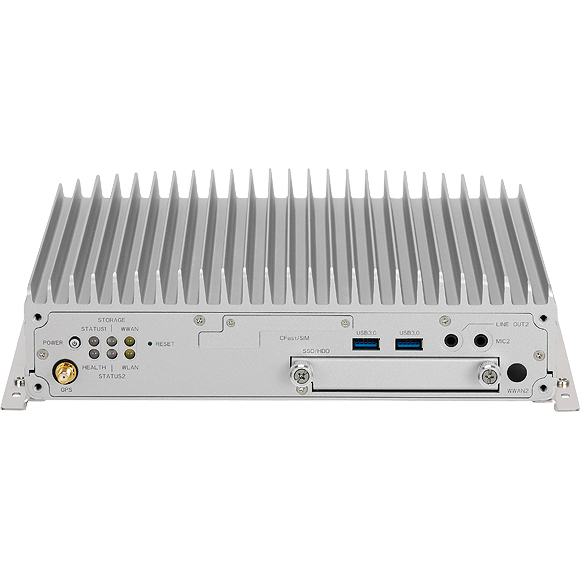

MVS 5600

Intel® Core™ i7 Modular Fanless In-Vehicle Computer
  • Main Feature
  • Modular design for flexible I/O expansion
  • Three SIM cards + dual WWAN modules support
  • Wake on RTC/SMS via WWAN module
  • Built-in u-blox NEO-M8N module, optional Dead Reckoning support
  • Intel® Core™ dual core i7-6600U/i3-6100U
  • Voice communication via WWAN module
  • iButton for driver ID identification
  • Built-in CAN 2.0B. Optional OBDII function (SAE J1939)
Add to Inquiry
Datasheet(PDF)

MVS 5600-7BU (P/N: 10VS0560006X0)
6th generation Intel® Core™ dual core i7-6600U, 2.6GHz, 2GB DDR3L industrial grade SO-DIMM, 2 x 10/100/1000 Ethernet, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485, 2 x USB3.0, 2 x USB2.0 , 12VDC output, 1 x CAN

MVS 5600-3BU (P/N: 10VS0560007X0)
6th generation Intel® Core™ daul core i3-6100U, 2.3GHz, 2GB DDR3L industrial grade SO-DIMM, 2 x 10/100/1000 Ethernet, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485, 2 x USB3.0, 2 x USB2.0, 12VDC output, 1 x CAN
