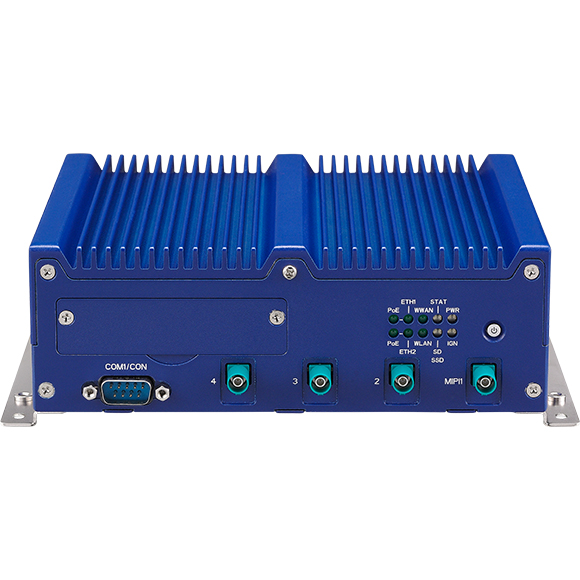

ATC 3200

NVIDIA® Jetson™ TX2 Solution AIoT for ADAS and Machine Vision
  • Main Feature
  • AIoT edge gateway for ADAS and smart factory applications
  • Built-in NVIDIA® Jetson™ TX2 SOM up to 1.3 TFOPS compute
  • The compact, rugged and fanless design
  • 4-CH MIPI SerDes CAM in synchronization to reach up to 15m/25m distance
  • Operate over a wide range temperature -30~70°C
  • Two GbE with PoE+ for LiDAR or GigE Vision/IP CAM
  • Diverse data secure storage, eMMC, SD and 2.5” SSD
  • Built-in GNSS & Wi-Fi module, optional for LTE/5G
  • Rich I/O ports: USB 3.0, OTG, COM, DI/DO, CAN and 12V/5VDC, etc.
  • 9~36V DC-in with IGN control
  • CE/FCC, Emark certified
Add to Inquiry
Datasheet(PDF)

ATC3200 (P/N: 10AT0320000X0)

AIoT, NVIDIA® Jetson™ TX2 SOM w/ 8GB DDR4, 32GB eMMC, WLAN, 2 x COM, 2 x PoE GbE (RJ45), 2 x USB 3.0



ATC3200-4M (P/N: 10AT0320001X0)

AIoT, NVIDIA® Jetson™ TX2 TX2 SOM w/ 8GB DDR4, 32GB eMMC, 2 x COM, 2 x PoE GbE (RJ45), 2 x USB 3.0, 4-ch MIPI SerDes



CAM1-MT1080-15m (P/N: 7900000199X00)

2.3M(G) MiniCam-15mAR0234+ISP+VBO+Enclosure+15M Fakra A1A-NV-MC0234-15M



CAM1-MT720-15m (P/N: 7900000202X00)

1M(G) MiniCam-15mAR0144+ISP+VBO+Enclosure+15M Fakra A1A-NV-MC0144-15M
