NISE 3600P2 (EOL)

3rd Generation Intel® Core™ i7/i5/i3 rPGA Fanless System with Two PCIex4 Expansion
  • Main Feature
  • Support 3rd generation Intel® Core™ i7/i5/i3 rPGA socket type processor
  • Mobile Intel® QM77 PCH
  • Support 1x 2.5" SATA HDD or 2x SATA DOM
  • 1x VGA, 1x DVI-D and 2x Display port with Independent Display support
  • Dual Intel® GbE LAN ports
  • 4x USB 3.0, 2x USB 2.0, 5x RS232 and 1x RS232/422/485
  • 1x internal mini-PCIe socket support Wifi or 3.5G module
  • 1x external CFast socket, 1x SIM card socket, two PCIex4 expansion
  • Support +9V to 30VDC input; Support ATX power mode
  • Two PCI or PCIe x4 expansion
Add to Inquiry
Datasheet(PDF)
CPU Support Support 3rd generation Intel® Core™ i7/i5/i3 rPGA Socket Type Processor
- Core™ i7-3632QM, Quad Core, 3.2 GHz, 6M Cache
- Core™ i5-3610ME, Dual Core, 2.7 GHz, 3M Cache
- Core™ i3-3120ME, Dual Core, 2.4 GHz, 3M Cache
- Support Three Independent Display with above processors Support 2nd generation Intel® Core™ i5/i3 rPGA Socket Type Processor
- Core™ i5-2510E, Dual Core, 2.5 GHz, 3M Cache
- Celeron® B810, Dual Core, 1.6 GHz, 2M Cache
- Support Dual Independent Display with above processors
Main Memory 2x DDR3 SO-DIMM socket, supports up to 8GB DDR3/ DDR3L 1333/ 1600 SDRAM, with un-buffered and non-ECC
Display Option Three Independent Display (only support on 3rd Generation Processor)
- Two Display Port and 1x VGA
- Two Display Port and 1x DVI-D Dual Independent Display
- VGA and DVI-D
- Display Port and VGA
- Display Port and DVI-D
- Display Port and Display Port

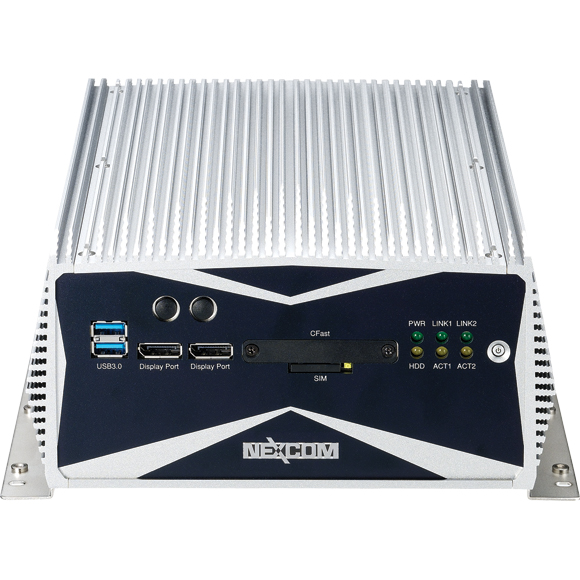

I/O Interface-Front ATX power on/ off switch HDD Access/ Power status LEDs 2x USB3.0 ports (Blue Color) 2x Display Port (Can be converted to DVI-D or HDMI via cables) 2x Antenna holes 1x external CFast (optional) 1x SIM card socket
I/O Interface-Rear 2x DB9 for COM5 & COM6 (RS232) 1x DB44 Serial Port, 4x COM port
- COM1/COM3/COM4: RS232
- COM2: RS232/422/485 2x Intel® GbE LAN ports (Intel 82574L and 82579LM) 2x USB2.0 ports 2x USB3.0 ports (Blue Color) 1 x DB15 VGA port 1 x DVI-D port 1 x Line-out and 1x Mic-in 2-pin Remote Power on/ off switch 9~30V DC input
Storage Device 1x CFast socket 1x 2.5” SATA HDD or 2x SATA DOM SATA DOM: support 90 degree horizontal type only
Expansion Slot NISE 3600E2: Two PCIe x4 Expansion Slot
- Add-on card length: One 169mm max. and One 240mm max.
- Power consumption: 10W/slot max. NISE 3600P2: Two PCI Expansion Slot
- Add-on card length: One 169mm max. and One 240mm max.
- Power consumption: 10W/slot max. NISE 3600P2E: One PCIe x4 and One PCI Expansion Slot
- Add-on card length: 169mm max. for PCIe x4 and 240mm max. for PCI expansion
- Power consumption: 10W/slot max. 1x Mini-PCIe socket (Support optional WiFi or 3.5G module)
Power Requirements ATX power mode On-board DC to DC power support from 9V to 30V DC Optional power adapter
Dimensions 215mm (W) x 272mm (D) x 114mm (H) without wall mount bracket
Construction Aluminum Chassis with fanless design
Environment Operating temperature:
Ambient with air flow: -5°C ~ 55°C
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C ~ 80°C Relative humidity: 95% at 40 degree C Shock protection: 20G, half sine, 11ms, IEC60068-2-27 Vibration protection
Random: 0.5Grms @5~500 Hz according to IEC68-2-64
Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64
Certifications CE approval FCC Class A UL
OS Support Lists Windows XP 32bits and 64bits Windows 7 32bits and 64bits Windows 8.1 32 bits and 64 bits
